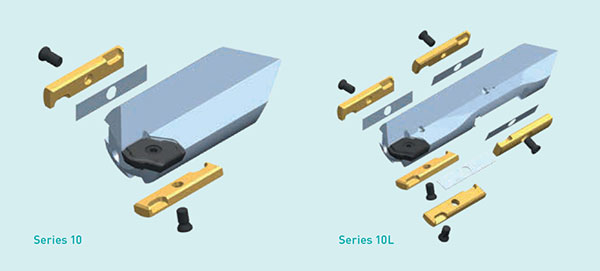

Indexable Gundrills
- Current diameter range: 12.00mm-28.00mm
- Cutting blade & guide pads full coated
- Covering the whole diameter range with only 6 sizes of cutting blades
- Body in steps of 0.1mm
- Available with a long head and three additional guide pads
- Adjusting shim in steps of 0.01mm to fine tune diameter tolerance

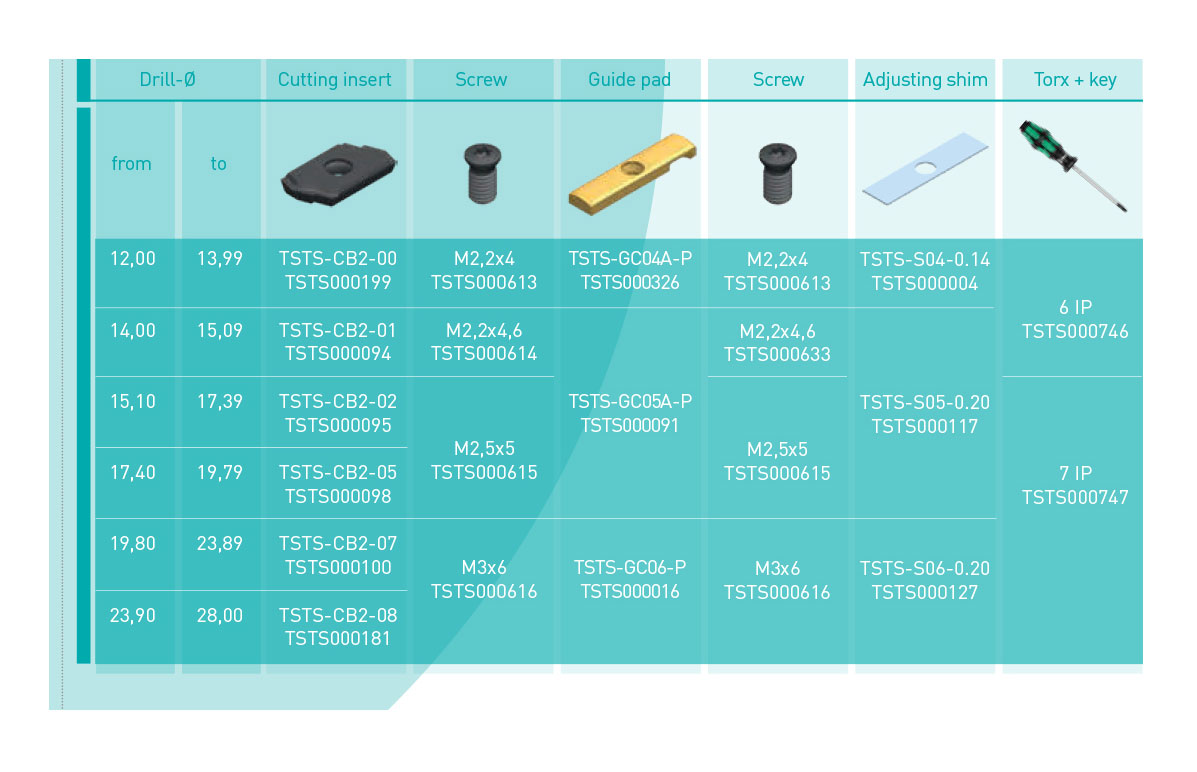

Wear Parts
Main Features
- High efficiency by specifically developed cutting edge geometry for optimal chip formation
- Short downtime resulting from quick exchange of wear parts on the clamped tool
- Easy to use, no sharpening, no length adjustment, easy inventory of wear parts
- Long tool life due to full coating and edge treatment
- Quick availability due to stocked wear parts
TECH SUPPORT
We have a dedicated staff of experts with over 85 years of combined experience to assist the customer with all of their special requirements. At the beginning phase of an engineering project, give us a call to discuss the process sequences required to avoid unnecessary problems in the future. If the customer is experiencing any gundrilling problems or has questions, they should contact our engineering staff for solutions.
