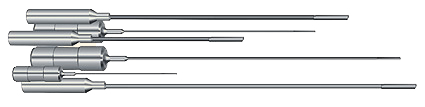

SOLID CARBIDE
GUNDRILLS
Diameters from .0275” (0.7MM) TO .4724” (12MM)
Lengths from 4” (101.6MM) – 28” (711.2MM)
Solid Carbide drills are manufactured as a single piece of carbide. The tip and tube is a single piece product which eliminates the braze joint at the head and tube transition. Thus resulting in an extremely strong, ridged tool.
Most small diameter drills significantly benefit from solid carbide drills because they yield the maximum allowable surface footage and feed rates without the whip factor due to their rigidity. Solid carbide drills are manufactured using a new process so excessive lead times are avoided.
The advantage of eliminating the braze joint at the tip and tube transition results in a more rigid tool allowing a faster surface footage and feed rates on small diameter drills.
Maximum Productivity and Higher Penetration Rates
More strength and rigidity which leads to greater tool life. We have the shortest lead times in the industry! Delivery within 24 hours on catalog diameters from 0.039 (1.0mm) to 0.3125″ (7.9mm) in lengths to 10.00″ (254 mm). Special orders to almost any length or diameter within 4 weeks.
TECH SUPPORT
We have a dedicated staff of experts with over 85 years of combined experience to assist the customer with all of their special requirements. At the beginning phase of an engineering project, give us a call to discuss the process sequences required to avoid unnecessary problems in the future. If the customer is experiencing any gundrilling problems or has questions, they should contact our engineering staff for solutions.
